Roll family 01 · Finishing stands

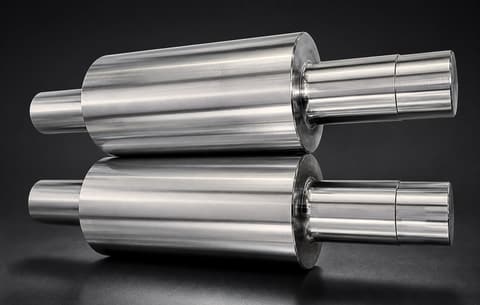

Clear Chill / Definite Chill Cast Iron Rolls
White graphite-free working surface for excellent wear resistance.
About this roll
Clear chill rolls: the material
The working surface shows a white, graphite-free structure of eutectic carbide and transformed austenite — a hard layer with excellent wear resistance. Flake graphite is embedded in a pearlite matrix containing about 0.08% combined carbon. Compared to grey iron, white chill iron has greater hardness, better wear resistance and high compressive strength, making excellent work rolls for two-, three- and four-high mills turning out high-grade ferrous and non-ferrous sheet, strip and sections.
Where it works
Its place in the mill
-
Roughing: not usual here
Heavy passes, high loads
-
Intermediate: not usual here
Shape and size take form
-
Finishing: used here
Final size and surface
Metallurgy
Composition and properties
Ranges from our grade sheets. The exact composition is set for each order.
| Grade | C % | Si % | Mn % | Cr % | Ni % | Mo % | U.T.S. kg/mm² | Elong. % | Shore C (HSC) |
|---|---|---|---|---|---|---|---|---|---|
| Definite Chill | 3.00-3.40 | 0.20-0.90 | 0.20-0.50 | 0.20-0.50 | 1.00-2.00 | 0.25-0.35 | 20-27 | 0.20-0.25 | 55-70 |
| Definite Chill (hard) | 3.20-3.60 | 0.20-0.80 | 0.20-0.60 | 0.20-0.50 | 1.70-2.50 | 0.25-0.40 | 20-27 | 0.20-0.25 | 70-75 |
- Alloy cast steel 30–45
- Grey iron core 35–45
- SG iron core 35–45
- Adamite steel base 45–55
- SG pearlitic 45–55
- SG pearlitic (hard) 55–65
- Definite chill 55–70
- Indefinite chill 55–75
- SG acicular 65–75
- Non metal 65–75
- Definite chill (hard) 70–75
- DP shell I 70–75
- SG acicular (hard) 75–80
- DP shell II 75–80
- HSS I 75–80
- HSS II 75–80
- DP shell III 80–85
Recommended use
Where we recommend it
Mills and stands where this roll is the usual choice, with the barrel hardness we recommend.
| Rolled product | Type of mill | Stand and barrel hardness, Shore C |
|---|---|---|
| Flat products for steel mills | ||
| Plates | 2 High |
|
| Plates | 3 High |
|
| Plates | 4 High |
|
| Sheet | 2 & 3 High |
|
| Shaped products for steel mills | ||
| Wire Rod | Continuous |
|
| Rolls for non-ferrous metals | ||
| Shaped Products | 2 High |
|
Production process
From melt to mill
Static cast rolls
Cast in one piece in a chill mould.
-
Charge mix
Pig iron and foundry returns, weighed for each heat.
-
Melting
Tapped into the ladle once the chemistry is right.
-
Static casting
Poured into a chill mould that freezes a hard working face.
-
Heat treatment
Hardening and tempering on a controlled temperature cycle.
-
Rough machining
Barrel and necks turned close to size.
-
Necks & wobblers
Necks, faces and wobblers shaped to the mill's drawing.
-
Grinding
A final grind brings the barrel to size and finish.
-
Testing
Shore hardness mapped across the barrel.
-
Certificate & dispatch
Rested on timber saddles and strapped, with its certificate.
- Your roll drawing, or barrel and neck sizes
- Mill type and the stand for the roll
- Material rolled and the pass or groove
- Quantity and the date you need it
